Load capacity

1000 kg

Working height

28 m

Max. occupants

4/4

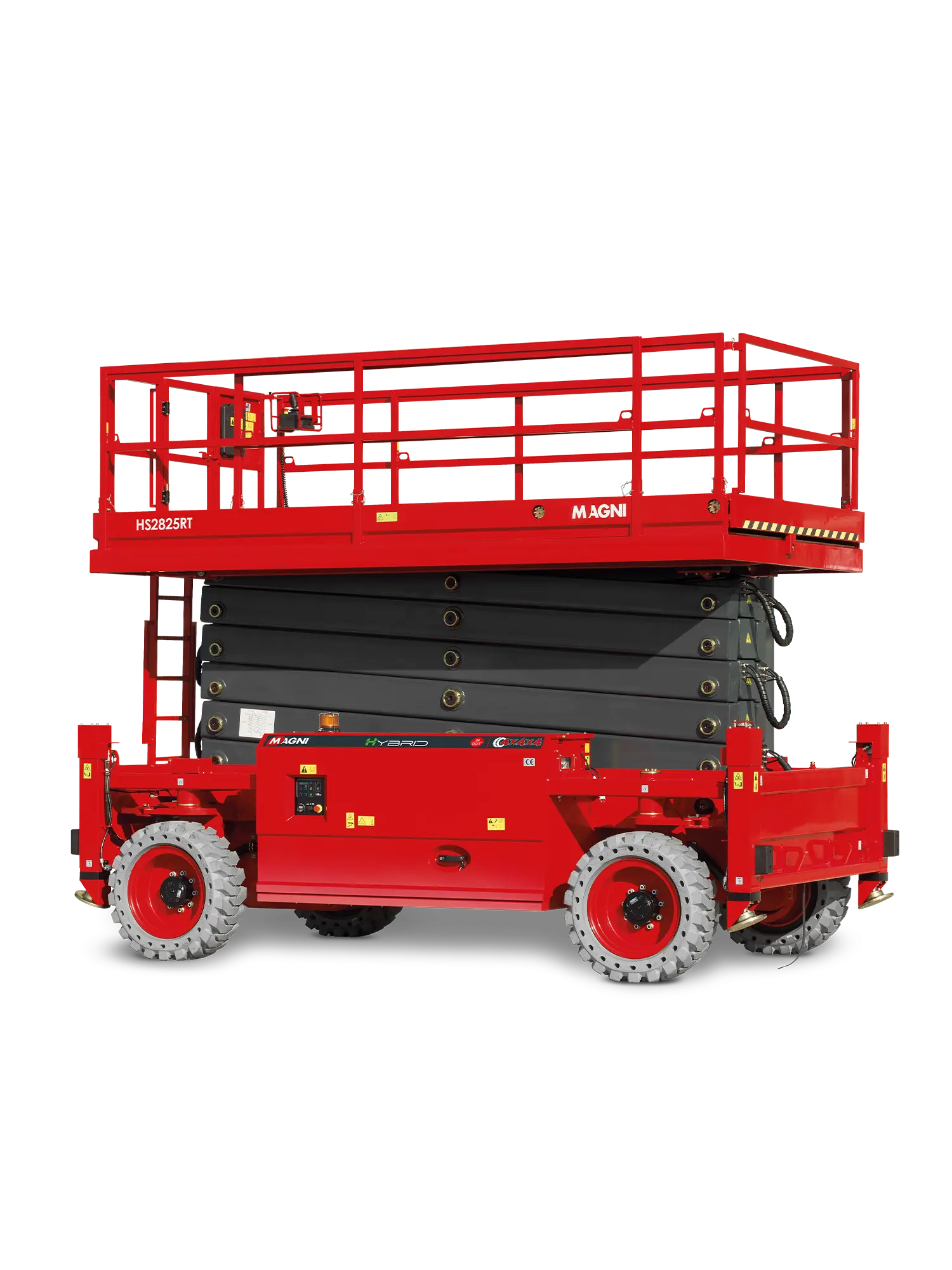

HS2825RT

Load capacity

1000 kg

Working height

28 m

Max. occupants

4/4

Hybrid off-road scissor lift for greater versatility on site. Equipped with standard 4WD and non-marking solid tires for the most rugged terrains. The stabilizers are automatic and perfect for stability when working at height.

• Proportional controls
• Self-locking gate on the platform
• 4-wheel drive
• 2 steering wheels
• Standard oscillating axle
• Automatic braking system
• Weight-dependent descent system
• Anti-burst hose system
• On-board diagnostic system
• Tilt indicator with alarm
• Motion alarm
• Horn
• Hour meter
• Hydraulic oil cooling system
• Acoustic signal for descent and double LED flashing light
• Folding guardrail
• Double sliding platform extension
• Manual emergency brake release
• Tie-down points
• Anchoring and lifting points
• Automatic stabilizers for working at height
• Engine anti-restart protection
• Emergency pump
• Emergency stop button
• Platform load control system
• Drivable at maximum height

Regulations

EN 280-1 Standards for mobile elevating work platforms (if available)

ANSI/SAIA A92.20

Technical Data

Metric
Feature Metric Imperial
Stabilizers Si Si
Load capacity 1000 kg -
Load capacity on extended platform 1000 kg -
Max. occupants (inside/outside) 4/4 4/4
Max. working height 28 m -
Platform floor level height 26 m -
Overall height (rails up) 4.13 m -
Transport height (rails down) 3.19 m -
Overall length 5.96 m -
Overall width 2.5 m -
Platform length 5.48 m -
Platform width (tyres) 2.45 m -
Platform extension 2.1 m -
Ground clearance 0.23 m -
Wheelbase 4.1 m -
Turning radius (inside) 350 m -
Turning radius (outside) 600 m -
Engine Kubota Z482/9,8kW Kubota Z482/9,8kW
Driving motors 4×53VAC/6kW 4×53VAC/6kW
Lifting motor 53VAC/28kW 53VAC/28kW
Travel speed (stowed) 3.5 km/h -
Travel speed (raised) 0.3 km/h -
Gradeability 30% 30%
Maximum working slope 2°/3° 2°/3°
Batteries 80V/420Ah 80V/420Ah
Integrated battery charger 80V/80A 80V/80A
Hydraulic tank 260 l 260 l
Diesel tank 130 l 130 l
Tyres 355/55D625 355/55D625
Non-marking tyres af af
Weight (with outriggers) 20360 kg -
